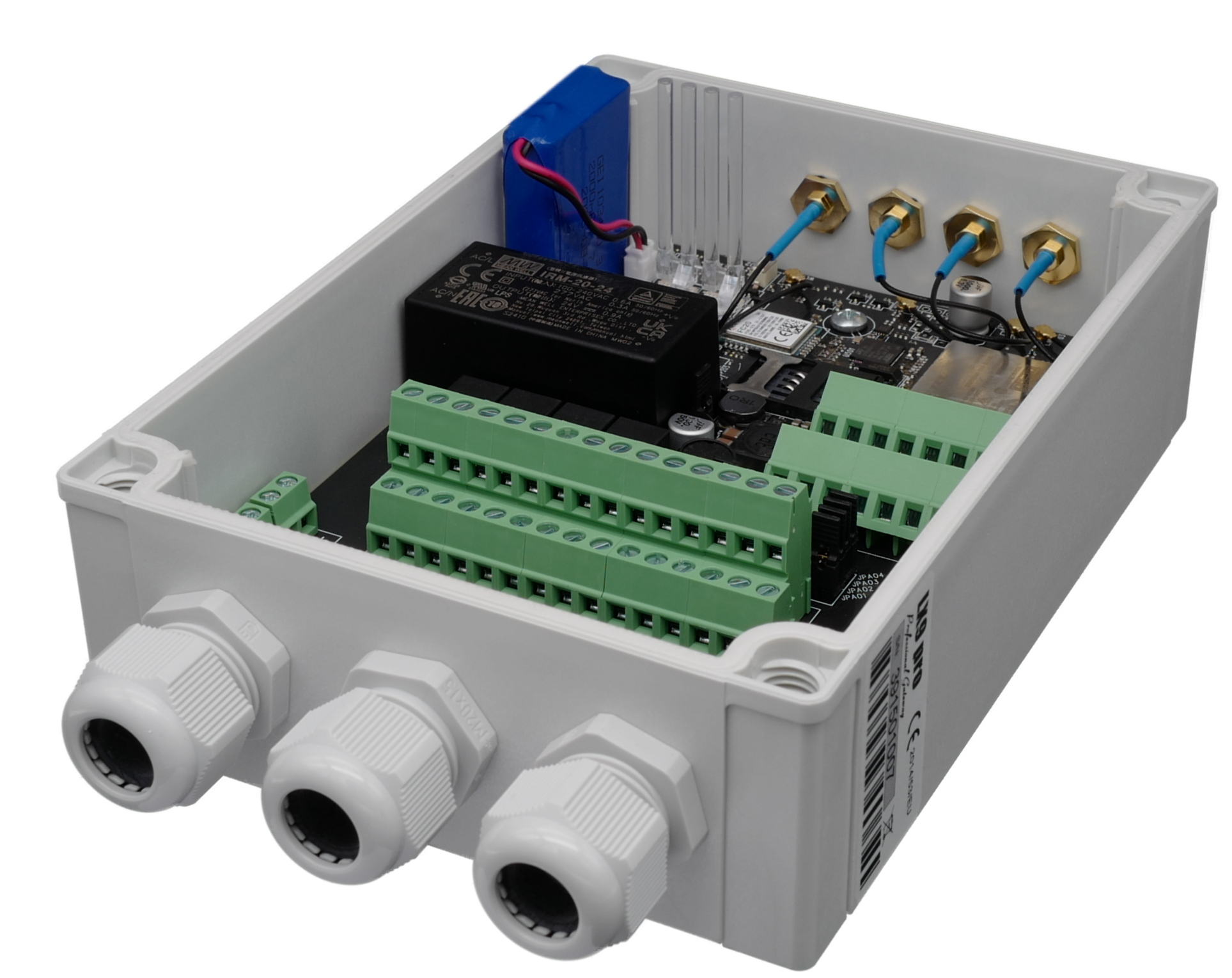

New Product: RTCU LX9 pro

Logic IO is proud to introduce the RTCU LX9 pro following the success of the RTCU LX9 eco.

This state-of-the-art gateway is designed for the most demanding M2M and Internet of Things applications. The RTCU LX9 pro offers a cost-effective alternative to the RTCU NX-900 and is fully plug-compatible, ensuring a seamless upgrade path.

The RTCU LX9 pro offers a robust and sophisticated platform that leverages decades of industrial expertise.
This gateway rests on the high-performance LX Hardware Core and the NX32L architecture to ensure mission-critical reliability in any environment.
The device is fully supported by the RTCU M2M Platform, which brings together all the necessary tools to develop, implement, and maintain even the most complex IoT applications.

Furthermore, development tasks are fully supported by the new RTCU M2M Studio and the RTCU IEX.







RTCU LX9 pro Highlights

• Architecture:
  Based on the NX32L (NX32 for Linux) execution architecture.
• Hardware Core:
  Features a powerful 32-bit ARM processor with hardware floating point and DSP. 128 Mbyte RAM and 512 Mbyte system NAND flash.
• Internal Storage:
  Equipped with a large 4 GB internal Flash drive for extensive data storage.
• Cellular Connectivity:
  Worldwide LTE Cat.4 multi-band cellular engine.
• Audio:
  Fully digitized audio subsystem with support for cellular voice and IVR applications.
• Wireless LAN:
  Integrated Wi-Fi at 2.4 GHz supporting up to 433 Mbps.
• Wired LAN:
  Provides a 100 Mbps Ethernet LAN interface.
• Bluetooth:
  Features Bluetooth Low-Energy 5.3 with an external connector.
• Positioning:
  Multi-constellation GNSS engine supporting GPS, GLONASS, GALILEO, and QZSS.
• Analog Inputs:
  4 x analog inputs (0..10V / 0..20 mA) with 12-bit resolution.
• Analog Outputs:
  4 x analog outputs (0..10V / 0..20 mA) with 12-bit resolution.
• Digital I/O:
  5 x digital inputs and 4 x high-power AC/DC relay outputs rated up to 5A.
• Serial Ports:
  Includes 2 x RS232 channels and 2 x RS485 channels.
• Expansion:
  Features a 1-Wire bus and supports Modbus expandable I/O modules.
• Sensors:
  Integrated 3-axis accelerometer and internal temperature sensor.
• Battery:
  On-board 2 Ah Li-Ion battery with an intelligent charger.
• Power Output:
  Provides a dedicated 5V/12V/24V DC-out supply for external peripherals.
• Ruggedization:
  Housed in an IP65-rated ruggedized plastic encapsulation.
• Operating Temperature:
  Rated for extreme environments from -40 to 60 Degrees Celsius.

Experience and Know-how

Building on 25 years of invaluable experience in the M2M/IoT field, Logic IO remains committed to providing the most sophisticated platform for mission-critical applications deployed worldwide.
