Connect vehicle systems
Use dual CAN, RS232, RS485 and 1-Wire to connect equipment to your application. Additional field I/O can be integrated through standard Modbus modules.
LX Series / Automotive M2M & IoT
RTCU LX2 pro

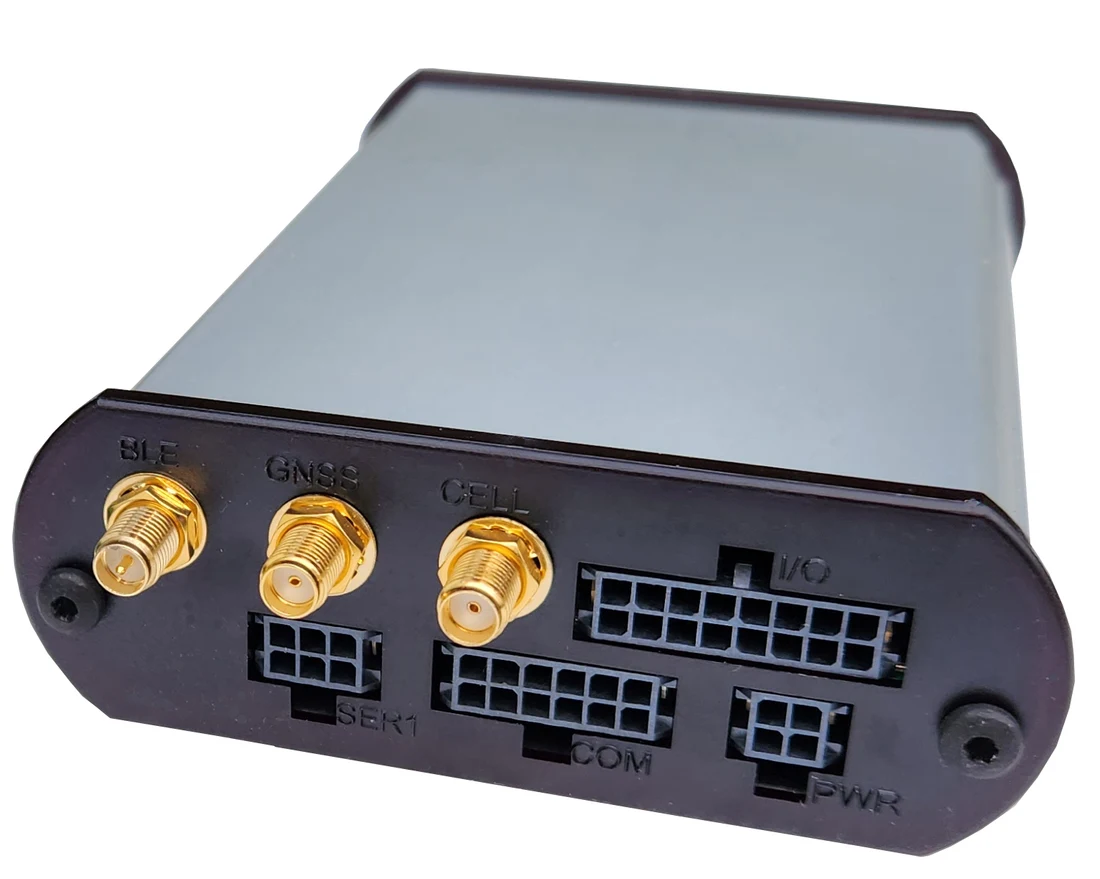

Vehicle connections.
Application control.
A programmable automotive M2M/IoT gateway combining dual CAN, LTE Cat. 4, Bluetooth Low Energy and positioning with NX32L application execution.
Part of the RTCU M2M Platform
Field interfaces / Application logicBring field data
Bring field data
into your application.
Connect vehicle interfaces and positioning to programmable application logic. Keep the exact GNSS variant in view when planning an installation.
Match the positioning task
The standard model provides dual-band GNSS. The U1 model combines a different GNSS receiver with an integrated IMU and dead reckoning.
Plan power behavior
External-power loss powers the device down by default. Battery operation is configurable, while digital outputs require external power.
Know your devicePositioning depends
Positioning depends
on the variant.
The standard and U1 models use different GNSS receivers. Use the matching data sheet and the model-specific sections of the shared technical manual.
RTCU LX2 pro
The standard model uses an Airoha dual-band L1/L5 multi-constellation GNSS receiver. Its positioning specification is distinct from the U1 model.
RTCU LX2 pro U1
The U1 model uses a u-blox NEO-M9V single-band receiver with integrated IMU and Untethered / Automotive Dead Reckoning. Use the U1 data sheet for this variant.
| Architecture | NX32L (NX32 for Linux) |
|---|---|
| Main processor | 32-bit ARM Cortex-A7, up to 1 GHz |
| Co-processor | 32-bit Cortex-M4 for power management |
| RAM | 128 MByte |
| System flash | Up to 512 MByte NAND Flash |
| Internal storage | 4 GB eMMC flash drive |
| Cellular | Worldwide LTE Cat. 4 |
|---|---|
| Bluetooth | Bluetooth Low Energy 5.3 |
| CAN | 2 × full CAN 2.0B channels |
| Serial interfaces | 2 × RS232; 1 × RS485 |
| Peripheral bus | 1-Wire |
| USB service / programming | Mini USB-B for programming and RACP communication |
| Standard-model GNSS | Dual-band L1/L5; GPS, GLONASS, Galileo, BeiDou and QZSS |
| U1-model GNSS | u-blox NEO-M9V; single-band L1 with integrated IMU, UDR and ADR |
| Movement sensors | 3-axis accelerometer and gyroscope |
| Digital inputs | 6, including ignition |
|---|---|
| Digital outputs | 4 high-side solid-state outputs |
| Analog / flex inputs | 2 shared inputs; 0–10 V analog or 0–30 V flex mode |
| Input conversion | Up to 12-bit resolution; 10-bit default |
| Expansion | Standard Modbus I/O modules |
| Supply voltage | 8–36 VDC |
|---|---|
| Internal battery | 2 Ah nominal Li-Ion with intelligent charging |
| Backup behavior | Power-down on external supply loss by default; configurable. Digital outputs are disabled without external power. |
| Enclosure | Aluminium profile and plastic; IP20 |
| Dimensions | W 97 × H 35 × D 132 mm, excluding connectors |
| Weight | Approximately 300 g without accessories |
| Operating temperature | −40 to +65 °C; battery charging has separate limits |
Plan your setup
Models & ordering
Choose the configuration for your installation and include the required region, interfaces and quantity in your enquiry.
Request a quote for this modelMinimum local setup
- A Windows PC with RTCU M2M Studio.
- The device, its documented power source and model-specific programming cable. Install the driver required for that connection.
- Antennas for the radio interfaces you use; a SIM and service subscription if the application uses cellular connectivity.
Remote M2M Studio access adds network connectivity and the RTCU Communication Hub. The Deployment Server is optional for managed remote updates.
Product resourcesFrom evaluation
From evaluation
to installation.
Download the manufacturer documents. Match their model and generation to the device when planning or maintaining an installation.
