Connect your installation
Ethernet, dual RS232 and dual RS485 channels connect local equipment. WLAN, Bluetooth Low Energy 5.3, LTE Cat. 4 and GNSS add wireless communication and positioning.
LX Series / Industrial M2M & IoT
RTCU LX9 pro
Field interfaces.
Application intelligence.

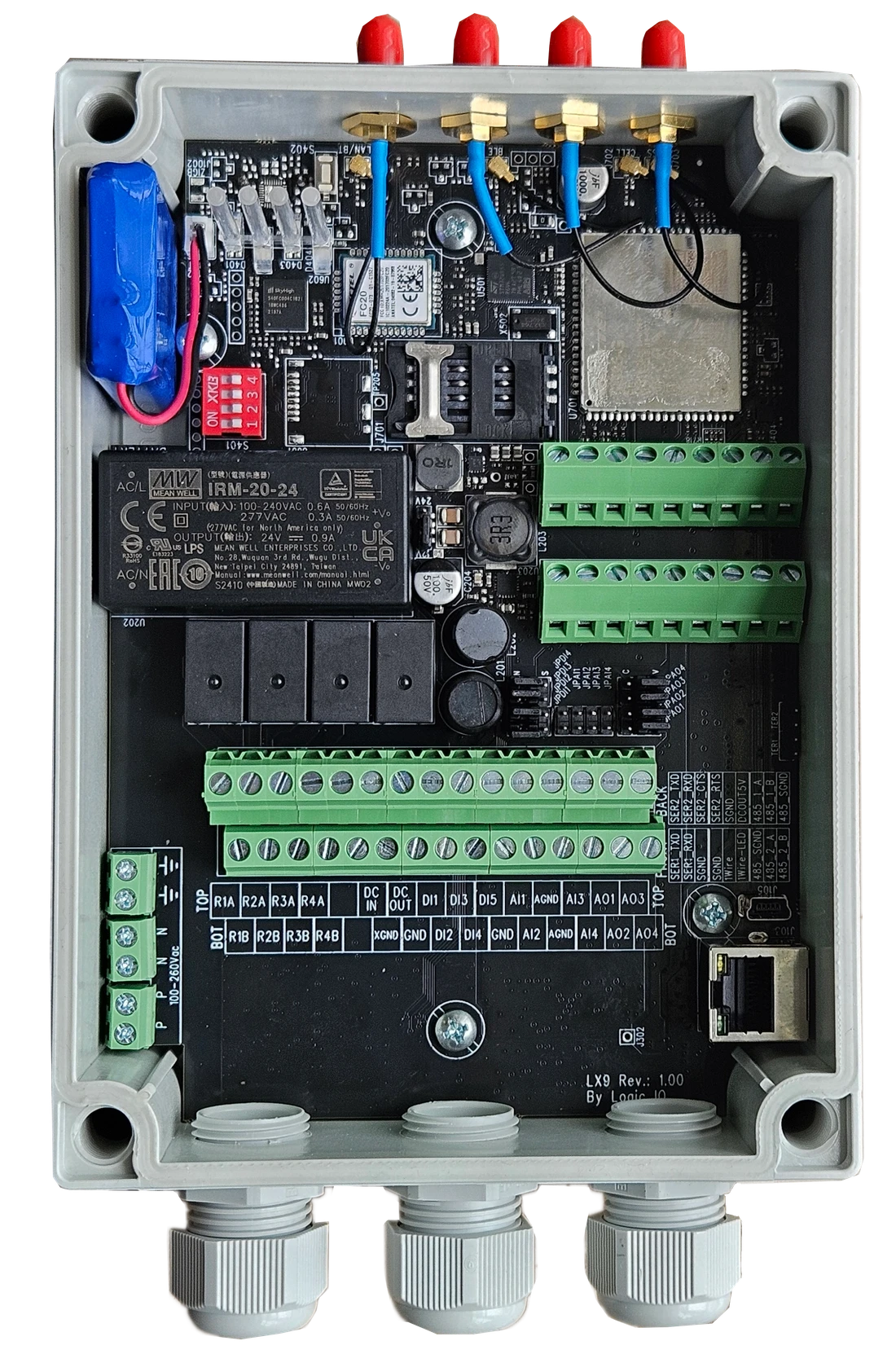

An industrial M2M/IoT gateway combining LTE Cat. 4, Ethernet, WLAN and Bluetooth Low Energy with analog I/O, relay outputs and NX32L application execution.
Part of the RTCU M2M Platform
Connect signals to softwareOne gateway.
One gateway.
A range of field interfaces.
Combine local I/O and wired equipment with cellular and network communication. Develop the application in RTCU M2M Studio, then run it on the Linux-based NX32L architecture.
Work with mixed signals
Use four analog inputs, four analog outputs, five digital inputs and four relay outputs. Expand the application’s I/O through standard Modbus modules.
Plan the power supply
The device accepts AC or DC supply and has a nominal 2 Ah backup battery. Check the supply requirements for analog outputs and S0 inputs, and configure the application’s power-loss behavior.
| Architecture | NX32L (NX32 for Linux) |
|---|---|
| Main processor | 32-bit ARM Cortex-A7, up to 1 GHz |
| Co-processor | 32-bit Cortex-M4 for power management |
| RAM | 128 MByte |
| System flash | 512 MByte NAND Flash |
| Internal flash drive | 4 GB |
| Cellular | Worldwide LTE Cat. 4 |
|---|---|
| Wireless LAN | Wi-Fi |
| Bluetooth | Bluetooth Low Energy 5.3 |
| Positioning | GNSS: GPS, GLONASS, Galileo and QZSS |
| Ethernet | 100 Mbps LAN |
| Serial interfaces | 2 × RS232; 2 × RS485 |
| Peripheral bus | 1-Wire |
| USB service | Mini USB-B service/programming port |
| Movement sensor | 3-axis accelerometer, ±16 g scale |
| Digital inputs | 5; up to 4 configurable as IEC62053-31 Class A S0 inputs |
|---|---|
| Relay outputs | 4 AC/DC relay outputs; see manual for switching limits |
| Analog inputs | 4; 0–10 V / 0–20 mA, up to 12-bit resolution (10-bit default) |
| Analog outputs | 4; 0–10 V / 0–20 mA, up to 12-bit resolution (10-bit default) |
| I/O supply conditions | Analog outputs require at least 15 VDC or AC supply. S0 mode requires at least 16 VDC when DC-powered. |
| Expansion | Standard Modbus I/O modules |
| DC supply | 8–36 VDC |
|---|---|
| AC supply | 100–260 VAC, 50/60 Hz |
| Backup battery | Onboard 2 Ah nominal Li-Ion with intelligent charging |
| Backup behavior | Power-down on external supply loss by default; configurable. S0 inputs and analog outputs are disabled on battery. |
| Enclosure | Polycarbonate plastic with TPE gasket |
| Dimensions | W 130 × H 180 × D 60 mm, excluding external connectors |
| Operating temperature | −40 to +60 °C; battery charging has separate temperature limits |
Plan your setup
Models & ordering
Choose the configuration for your installation and include the required region, interfaces and quantity in your enquiry.
Request a quote for this modelMinimum local setup
- A Windows PC with RTCU M2M Studio.
- The device, its documented power source and model-specific programming cable. Install the driver required for that connection.
- Antennas for the radio interfaces you use; a SIM and service subscription if the application uses cellular connectivity.
Remote M2M Studio access adds network connectivity and the RTCU Communication Hub. The Deployment Server is optional for managed remote updates.
Product resourcesFrom evaluation
From evaluation
to installation.
Download the model-specific data sheet, technical manual and declaration, alongside the RTCU open-source license notices.
Development tools & resourcesFrom requirements to reality
Request a quote for this model Does LX9 pro fit your installation?
Discuss your I/O, power supply and development requirements with our team.
