Work with vehicle interfaces

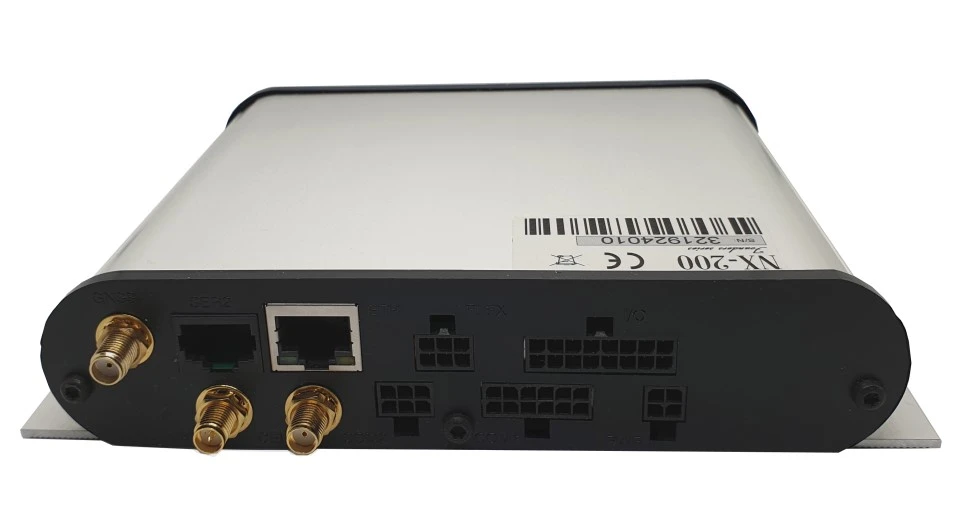

Two CAN 2.0B controllers, Ethernet, dual RS232, RS485 and 1-Wire connect the NX-200 to vehicle and peripheral systems. Expand I/O with standard Modbus modules.
NX Series / Automotive M2M & IoT
RTCU NX-200
Connect to the vehicle.
Build on the platform.
A programmable automotive M2M/IIoT gateway combining dual CAN, motion sensing, cellular connectivity and physical I/O with the NX32L execution architecture.
Part of the RTCU M2M Platform
Vehicle interfaces / Application logicBring vehicle data
Bring vehicle data
into your application.
Connect vehicle and field interfaces to programmable application logic. The NX-200 brings communications, I/O and motion sensors together in an aluminium enclosure.
Connect and locate
Combine LTE Cat. 4, WLAN, Bluetooth Classic / Low Energy and multi-constellation GNSS. Choose the NX-200 DR variant when Automotive Dead Reckoning is required.
Respond to movement and power
Motion sensors and an onboard Li-Ion battery support application power management. External-power loss powers the unit down by default; battery-operation behavior is configurable.
Select the exact variantOne model name.
One model name.
Distinct configurations.
Positioning capabilities depend on the variant. Use the exact product identity when checking interfaces, documentation and installation requirements.
RTCU NX-200
The standard model uses a multi-constellation GNSS receiver with GPS, GLONASS, Galileo and QZSS support.
RTCU NX-200 DR
The DR variant adds an Automotive Dead Reckoning GNSS receiver, with support for wheel-tick data or a physical wheel-tick input. Dead Reckoning is specific to this variant.
| Architecture | NX32L (NX32 for Linux) |
|---|---|
| Main processor | 32-bit ARM Cortex-A5, 500 MHz |
| RAM | 128 MByte LP-DDR |
| Flash memory | 512 MByte NAND; 16 MByte NOR |
| Persistent SRAM | 128 KByte with battery backup |
| Cellular | Worldwide LTE Cat. 4 |
|---|---|
| Wireless LAN | 2.4 GHz Wi-Fi |
| Bluetooth | Classic and Low Energy |
| Ethernet | 100 Mbps LAN |
| CAN | 2 × full CAN 2.0B controllers |
| Serial & peripheral interfaces | 2 × RS232, 1 × RS485, 1-Wire, 2 × USB host |
| USB service | Mini-USB service/programming port |
| Positioning | Multi-constellation GNSS; Automotive Dead Reckoning is specific to NX-200 DR |
| Digital inputs | 5, including the ignition input |
|---|---|
| Digital outputs | 4 high-side solid-state outputs |
| Flex inputs | 4; configurable analog/digital operation, 0–30 VDC |
| Analog inputs | 2; 0–10 VDC, up to 12-bit resolution |
| Motion sensors | 3-axis accelerometer, gyroscope and magnetometer |
| I/O expansion | Standard Modbus I/O modules |
| Removable storage | SD card and USB flash media |
| Supply voltage | 8–36 VDC |
|---|---|
| Internal battery | 2.6 Ah nominal Li-Ion |
| Enclosure | Aluminium profile with plastic parts; IP20 |
| Operating temperature | −40 to +65 °C; battery charging has separate limits |
| Dimensions | W 148 × H 34 × D 122 mm, excluding connectors and mounting flange |
| Weight | Approximately 500 g without accessories |
Plan your setup
Models & ordering
Choose the configuration for your installation and include the required region, interfaces and quantity in your enquiry.
Request a quote for this modelMinimum local setup
- A Windows PC with RTCU M2M Studio.
- The device, its documented power source and model-specific programming cable. Install the driver required for that connection.
- Antennas for the radio interfaces you use; a SIM and service subscription if the application uses cellular connectivity.
Remote M2M Studio access adds network connectivity and the RTCU Communication Hub. The Deployment Server is optional for managed remote updates.
Product resourcesFrom evaluation
From evaluation
to installation.
Download the manufacturer data sheet, technical manual, mechanical drawings and conformity document. Match the document and unit variant before installation.
