Work with mixed signals
Four analog inputs, four analog outputs, five digital inputs and four relay outputs connect the application to local equipment.
NX Series / Industrial M2M & IoT

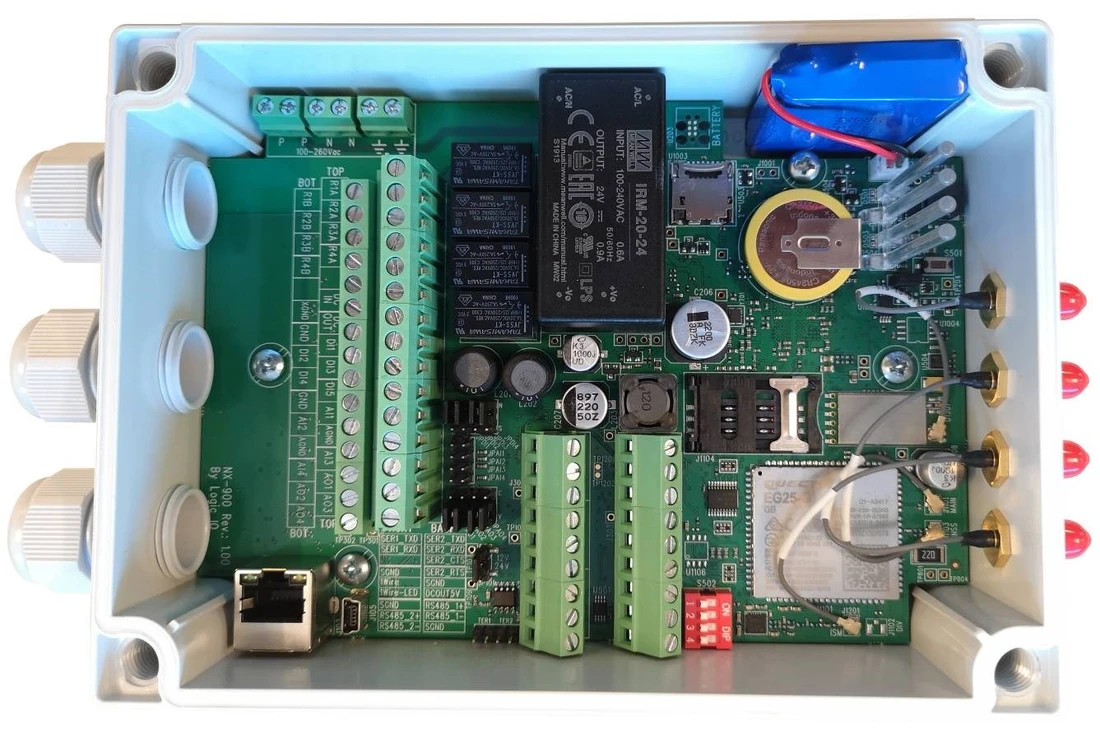

RTCU NX-900
Mixed signals. Connected systems.
An industrial NX32L gateway combining analog I/O, relay outputs, AC/DC supply and cellular, network and serial communication.
Part of the RTCU M2M Platform
Interfaces / Application logicConnect the equipment.
Connect the equipment.
Develop the application.
An industrial NX32L gateway combining analog I/O, relay outputs, AC/DC supply and cellular, network and serial communication.
Connect wired and wireless systems
Ethernet, dual RS232, dual RS485 and 1-Wire work alongside LTE Cat. 4, WLAN, Bluetooth and GNSS.
Plan the supply
Use AC or DC supply and configure the required power-loss behavior. Analog-output and S0 modes have additional supply conditions documented below.
| Architecture | NX32L (NX32 for Linux) |
|---|---|
| Main processor | 32-bit ARM Cortex-A5, up to 500 MHz |
| RAM | 128 MByte LP-DDR |
| Flash memory | 512 MByte NAND; 16 MByte NOR |
| Persistent SRAM | 128 KByte with battery backup |
| Removable storage | Micro SD card |
| Cellular | Worldwide LTE Cat. 4 |
|---|---|
| Wireless LAN | 2.4 GHz Wi-Fi |
| Bluetooth | Classic and Low Energy |
| Positioning | Multi-constellation GNSS |
| Ethernet | 100 Mbps LAN |
| Serial & peripheral interfaces | 2 × RS232; 2 × RS485; 1-Wire |
| USB service | Mini-USB service/programming port |
| ISM RF | 868 MHz ISM transceiver |
| Movement sensor | 3-axis accelerometer |
| Digital inputs | 5; up to 4 configurable as IEC62053-31 Class A S0 inputs |
|---|---|
| Relay outputs | 4 AC/DC relay outputs; consult the manual for switching limits |
| Analog inputs | 4; 0–10 V / 0–20 mA, up to 12-bit resolution (10-bit default) |
| Analog outputs | 4; 0–10 V / 0–20 mA, up to 12-bit resolution (10-bit default) |
| I/O supply conditions | Analog outputs require at least 15 VDC or AC supply. S0 mode requires at least 16 VDC or AC supply and application enabling. |
| Expansion | Standard Modbus I/O modules |
| DC supply | 8–36 VDC |
|---|---|
| AC supply | 100–260 VAC, 50/60 Hz |
| Backup battery | Onboard 2 Ah nominal Li-Ion |
| Backup behavior | Power-down on external supply loss by default; configurable battery operation |
| Enclosure | Polycarbonate plastic with TPE gasket |
| Dimensions | W 130 × H 180 × D 60 mm, excluding external connectors |
| Operating temperature | −40 to +60 °C; battery charging has separate limits |
Plan your setup
Models & ordering
Choose the configuration for your installation and include the required region, interfaces and quantity in your enquiry.
Request a quote for this modelMinimum local setup
- A Windows PC with RTCU M2M Studio.
- The device, its documented power source and model-specific programming cable. Install the driver required for that connection.
- Antennas for the radio interfaces you use; a SIM and service subscription if the application uses cellular connectivity.
Remote M2M Studio access adds network connectivity and the RTCU Communication Hub. The Deployment Server is optional for managed remote updates.
Product resourcesFrom evaluation
From evaluation
to installation.
Download the manufacturer documents. Match the exact model and document version to your installation.
Development tools & resourcesFrom requirements to reality
Request a quote for this model Does NX-900 fit your application?
Discuss your interfaces, installation and development requirements with our team.
