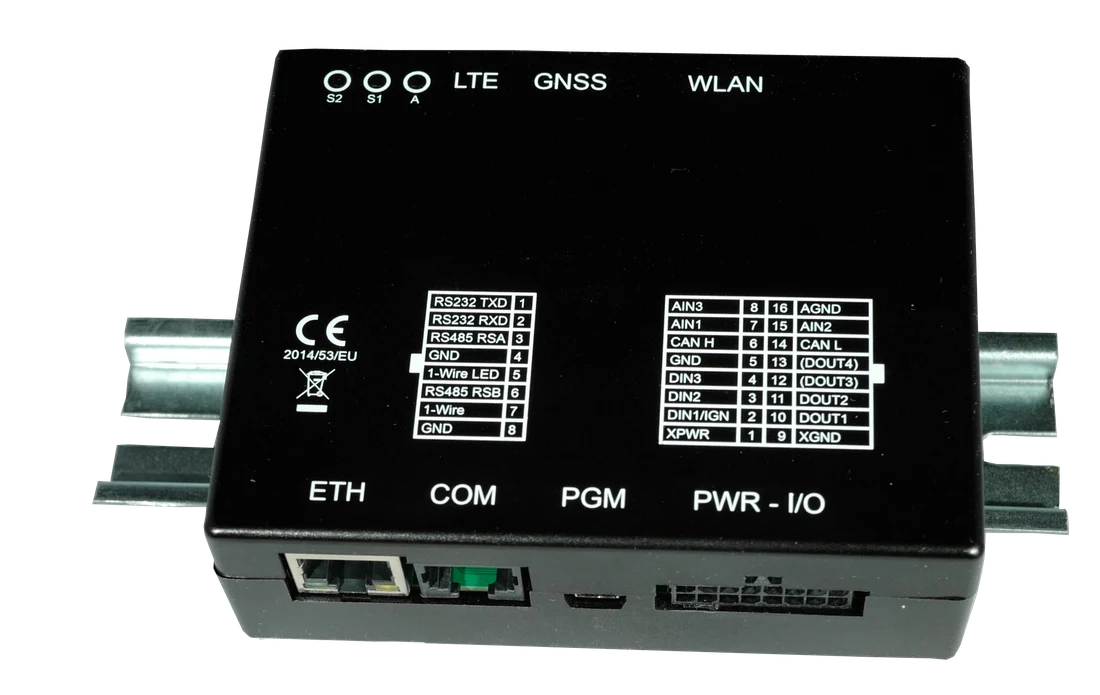

RTCU LX5 enclosure with Ethernet, serial, programming and power/I/O connections

LX Series / M2M & Industrial IoT

RTCU LX5 ultra

Compact hardware.
Wide-ranging possibilities.

A compact, programmable M2M/IIoT gateway for industrial and automotive applications. Combine LTE Cat. 4, Ethernet and field interfaces with the RTCU M2M Platform.

Worldwide LTE Cat. 4Ethernet & WLANNX32L

Technical documents Request a quote for this model

Part of the RTCU M2M Platform

Application-ready interfaces

A compact link
between systems.

Collect field signals, execute application logic and communicate with your infrastructure. The LX5 ultra combines wired and wireless interfaces with programmable I/O in a compact enclosure.

Connect your equipment

Ethernet, CAN 2.0B, RS232, RS485 and 1-Wire connect the gateway to field equipment. Expand I/O using standard Modbus modules.

Communicate beyond the cabinet

Worldwide LTE Cat. 4, WLAN and multi-constellation GNSS provide cellular, local wireless and positioning capabilities.

Choose your installation

An 8–36 VDC supply range and onboard 2 Ah Li-Ion backup battery support installation flexibility. A DIN rail version is available.

Processing & runtime
Architecture	NX32L (NX32 for Linux)
Main processor	32-bit ARM Cortex-A7, up to 1 GHz
Co-processor	32-bit Cortex-M4 for power management
RAM	128 MByte
System flash	512 MByte NAND Flash

Connectivity
Cellular	Worldwide LTE Cat. 4
Wireless LAN	Wi-Fi
Local radio	868 MHz ISM transceiver
Positioning	Multi-constellation GNSS: GPS, GLONASS and Galileo
Ethernet	100 Mbps LAN
Field interfaces	CAN 2.0B, 1 × RS232, 1 × RS485, 1-Wire
USB service	Mini USB-B service/programming port

I/O & expansion
Digital inputs	3
Digital outputs	4 solid-state open-drain outputs
Analog inputs	3; 0–10 V / 0–20 mA, 12-bit resolution
I/O expansion	Standard Modbus I/O modules
Removable storage	Micro SD card

Power & installation
Supply voltage	8–36 VDC
Backup battery	2 Ah Li-Ion with intelligent charging
Enclosure	UL94 V0 grade PC plastic
Mounting	Standard enclosure or DIN rail version

Plan your setup

Models & ordering

Choose the configuration for your installation and include the required region, interfaces and quantity in your enquiry.

RT-LX5UStandard enclosureRequest a quote for RT-LX5U
RT-LX5U-DINDIN-rail mounting versionRequest a quote for RT-LX5U-DIN

Request a quote for this model

Minimum local setup

A Windows PC with RTCU M2M Studio.
The device, its documented power source and model-specific programming cable. Install the driver required for that connection.
Antennas for the radio interfaces you use; a SIM and service subscription if the application uses cellular connectivity.

Remote M2M Studio access adds network connectivity and the RTCU Communication Hub. The Deployment Server is optional for managed remote updates.

Local and remote setup guide Starter kit and included parts Software & firmware license (PDF)

Product resources

From evaluation
to installation.

Product data, installation guidance and software license notices. Download the Logic IO technical documents (PDF).

Compare LX5 eco and LX5 ultra (PNG)

M2M Studio download

LX5 ultra data sheetProduct overview · V1.00 · PDF LX5 ultra technical manualInstallation & interfaces · V1.00 · PDF Open source software licensesRTCU software license notices · PDF
